상세 정보 |
|||
| 상품 이름: | 155Mbps SFP 송수신기 | 사고 방식: | 1490nm/1550nm |
|---|---|---|---|
| 거리: | 80km | 연결기: | LC |
| DDM: | 지원 | 섬유형: | 단일 파이버 단일모드 |
| 전원 공급기: | 3.3V | 작동 온도: | 0-70℃ |
| 제조사: | 예 | 적합합니다: | 시스코 화웨이 HP 쥬니퍼 기타 등등... |
| 보증: | 3년 | ||
제품 설명
155Mb/s SFP Transceiver Singlemode single fiber 20km 1310nm/1550nm LC DDM
Description
NuFiber’s FE-BX80-SM1490 Transceivers are a high performance, cost effective module which have a single LC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a PIN receiver and the transmitter uses a 1490 nm DFB laser, up to 29dB link budge ensure this module SONET OC-3 / SDH STM -1 80km application.
Features
- Up to 155Mb/s Data Links
- Hot-Pluggable
- Single LC connector
- Up to 80 km on 9/125μm SMF
- 1490nm DFB laser transmitter
- 1550nm PIN photo-detector
- Single +3.3V Power Supply
- Monitoring Interface Compliant with SFF-8472
- Maximum Power <1W
- Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available
- RoHS compliant and Lead Free
Applications
►SONET OC-3/SDH STM-1
►Fast Ethernet
►Other Optical Links
Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
| Transmitter Section: | ||||||
| Center Wavelength | λc | 1470 | 1490 | 1510 | nm | |
| Spectral Width | σ | 1 | nm | |||
| Sidemode Supression ratio | SSRmin | 30 | dB | |||
| Optical Output Power | Pout | -5 | 0 | dBm | 1 | |
| Optical Rise/Fall Time | tr / tf | 2 | ns | 2 | ||
| Extinction Ratio | ER | 10 | dB | |||
| Generated Jitter (peak to peak) | JTXp-p | 0.07 | UI | 3 | ||
| Generated Jitter (rms) | JTXrms | 0.007 | UI | 3 | ||
| Eye Mask for Optical Output | Compliant with G.957(class 1 laser safety) | |||||
| Receiver Section: | ||||||
| Optical Input Wavelength | λc | 1530 | 1550 | 1570 | nm | |
| Receiver Overload | Pol | -8 | dBm | 4 | ||
| RX Sensitivity | Sen | -34 | dBm | 4 | ||
| RX_LOS Assert | LOS A | -45 | dBm | |||
| RX_LOS De-assert | LOS D | -35 | dBm | |||
| RX_LOS Hysteresis | LOS H | 0.5 | dB | |||
| General Specifications: | ||||||
| Data Rate | BR | 155 | Mb/s | |||
| Bit Error Rate | BER | 10-12 | ||||
| Max. Supported Link Length on 9/125μm SMF@155Mb/s | LMAX | 80 | km | |||
| Total System Budget | LB | 29 | dB | |||

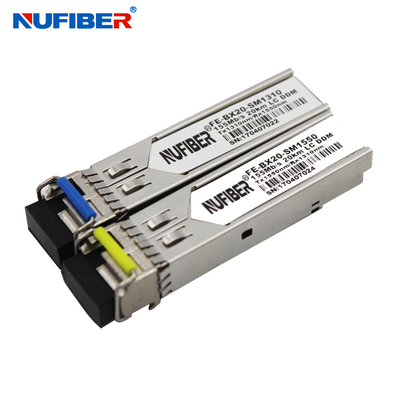

Products Show
Packing&Shipping
Factory Show
Ordering Information
| BiDi SFP Transceiver | ||
| Part Number | Product Description | |
| 155Mb/s SFP Transceiver | ||
| FE-BX20-SM1310/1550 | 155Mbps,BiDi 1310nm/1550nm SM 20km LC, DDM 0°C~+70°C | |
| FE-BX40-SM1310/1550 | 155Mbps, BiDi 1310nm/1550nm SM 40km LC, DDM 0°C~+70°C | |
| FE-BX80-SM1310/1550 | 155Mbps, BiDi 1310nm/1550nm SM 80km LC, DDM 0°C~+70°C | |
| FE-BX100-SM1310/1550 | 155Mbps, BiDi 1310nm/1550nm SM 120km LC, DDM 0°C~+70°C | |
| 1.25Gbps SFP Transceiver | ||
| GE-BX10-SM1310/1550 | 1.25Gbps, BiDi 1310nm/1550nm SM 10km LC,DDM 0°C~+70°C | |
| GE-BX20-SM1310/1550 | 1.25Gbps, BiDi 1310nm/1550nm SM 20km LC, DDM 0°C~+70°C | |
| GE-BX40-SM1310/1550 | 1.25Gbps, BiDi 1310nm/1550nm SM 40km LC, DDM 0°C~+70°C | |
| GE-BX60-SM1310/1550 | 1.25Gbps, BiDi 1310nm/1550nm SM 60km LC, DDM 0°C~+70°C | |
| GE-BX80-SM1310/1550 | 1.25Gbps, BiDi 1310nm/1550nm SM 80km LC, DDM 0°C~+70°C | |
| GE-BX100-SM1310/1550 | 1.25Gbps, BiDi 1310nm/1550nm SM 120km LC, DDM 0°C~+70°C | |
| 10Gbps SFP+ Transceiver | ||
| SFP-10G-BX20-SM1330/1270 | 10Gbps, BiDi 1330nm/1270nm SM 20km LC,DDM 0°C~+70°C | |
| SFP-10G-BX40-SM1330/1270 | 10Gbps, BiDi 1330nm/1270nm SM 40km LC,DDM 0°C~+70°C | |
| SFP-10G-BX60-SM1330/1270 | 10Gbps, BiDi 1330nm/1270nm SM 60km LC,DDM 0°C~+70°C | |
| SFP-10G-BX80-SM1490/1550 | 10Gbps, BiDi 1490nm/1550nm SM 80km LC,DDM 0°C~+70°C | |
| XFP Transceiver | ||
| XFP-BX20-SM1330/1270 | 10Gbps, BiDi 1330nm/1270nm SM 20km LC,DDM 0°C~+70°C | |
| XFP-BX40-SM1330/1270 | 10Gbps, BiDi 1330nm/1270nm SM 40km LC,DDM 0°C~+70°C | |
| XFP-BX60-SM1330/1270 | 10Gbps, BiDi 1330nm/1270nm SM 60km LC,DDM 0°C~+70°C | |
