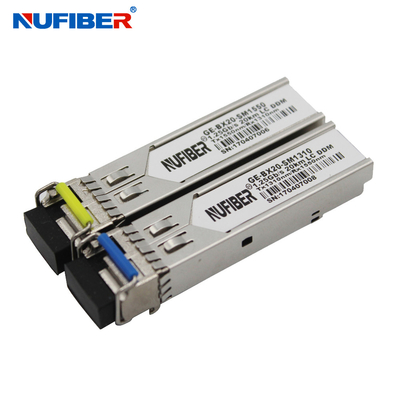

DDM과 SM 비디 LC 1.25G SFP 송수신기 20 킬로미터 1310nm 1550nm
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | NuFiber |
| 인증: | CE FCC |
| 모델 번호: | GE-BX20-SM1310 |
결제 및 배송 조건:
| 최소 주문 수량: | 1 쌍 |
|---|---|
| 가격: | USD 20~25 pair |
| 포장 세부 사항: | 10 PC / 플라스틱 백, 500 PC / 통, 통 사이즈 : 455*328*280mm |
| 배달 시간: | 1-3 일 일 |
| 지불 조건: | L/C (신용장), 전신환, 웨스턴 유니온 |
| 공급 능력: | 달 당 100,000 PC |
|
상세 정보 |
|||
| 상품 이름: | 1.25Gb/S SFP 단위 | 사고 방식: | 1310/1550nm |
|---|---|---|---|
| 거리: | 20km | 연결기: | 단순한 LC |
| DDM: | 지원 | 섬유형: | 단일모드 단일 파이버 |
| 전압: | 3.3V | 호환성: | 마이크로티크, 쥬니퍼, 시스코, 화웨이, HP... |
| 제조사: | 10years 보다는 더 많은 것 | 일 임시 직원.: | 0~70C |
| 보증: | 2년이요 | ||
| 하이 라이트: | 비디 LC 1.25G SFP Transceiver,1.25G SFP 송수신기 20 킬로미터 1310nm,SM 비디 LC SFP DDM 송수신기 |
||
제품 설명
1.25G SM bidi LC 20km 1310nm/1550nm with DDM SFP optical transceiver compatible Cisco Huawei HPE Mikrotik
Description
NuFiber’s GE-BX20-SM1310 Transceivers are a high performance, cost effective module which have a single LC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm FP laser, up to 14dB link budge ensure this module 1000Base-LX Ethernet 20km application.
Features
- Up to 1.25Gb/s Data Links
- Hot-Pluggable
- Single LC connector
- Up to 20 km on 9/125μm SMF
- 1310nm FP laser transmitter
- 1550nm PIN photo-detector
- Single +3.3V Power Supply
- Monitoring Interface Compliant with SFF-8472
- Maximum Power <1W
- Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available
- RoHS compliant and Lead Free
Applications
- 1000Base-LX Ethernet
- Metro/Access Networks
- 1×Fiber Channel
- Other Optical Links
Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
| Transmitter Section: | ||||||
| Center Wavelength | λc | 1270 | 1310 | 1600 | nm | |
| Spectral Width(RMS) | σRMS | 4 | nm | |||
| Optical Output Power | Pout | -9 | -3 | dBm | 1 | |
| Extinction Ratio | ER | 9 | dB | |||
| Optical Rise/Fall Time | tr / tf | 260 | ps | 2 | ||
| Relative Intensity Noise | RIN | -120 | dB/Hz | |||
| Total Jitter Contribution | TX Δ TJ | 0.284 | UI | 3 | ||
| Eye Mask for Optical Output | Compliant with IEEE802.3 z (class 1 laser safety) | |||||
| Receiver Section: | ||||||
| Optical Input Wavelength | λc | 1530 | 1550 | 1570 | nm | |
| Receiver Overload | Pol | -3 | dBm | 4 | ||
| RX Sensitivity | Sen | -24 | dBm | 4 | ||
| RX_LOS Assert | LOS A | -40 | dBm | |||
| RX_LOS De-assert | LOS D | -25 | dBm | |||
| RX_LOS Hysteresis | LOS H | 0.5 | dB | |||
| General Specifications: | ||||||
| Data Rate | BR | 1.25 | Gb/s | |||
| Bit Error Rate | BER | 10-12 | ||||
| Max. Supported Link Length on 9/125μm SMF@1.25Gb/s | LMAX | 20 | km | |||
| Total System Budget | LB | 14 | dB | |||
Ordering information
| Model | Description |
| GE-SX-MM850 | 1.25G MM Dual fiber 850nm SX DDM LC 0.5km |
| GE-SX-MM1310 | 1.25G MM Dual fiber 1310nm SX DDM LC 2km |
| GE-LX20-SM1310 | 1.25G SM Dual fiber 1310nm LX DDM LC 20km |
| GE-EX40-SM1310 | 1.25G SM Dual fiber 1310 DFB DDM LC 40km |
| GE-ZX80-SM1550 | 1.25G SM Dual fiber 1550 DFB DDM LC 80km |
| GE-ZX120-SM1550 | 1.25G SM Dual fiber 1550 DFB DDM LC 120km |
| GE-BX03-SM1310S | 1.25G 1310nmTx/1550nmRx BIDI SMF SC 3KM |
| GE-BX03-SM1550S | 1.25G 1550nmTx/1310nmRx BIDI SMF SC 3KM |
| GE-BX20-SM1310 | 1.25G 1310nmTx/1550nmRx BIDI SMF LC 20KM |
| GE-BX20-SM1550 | 1.25G 1550nmTx/1310nmRx BIDI SMF LC 20KM |
| GE-BX40-SM1310 | 1.25G 1310nmTx/1550nmRx BIDI SMF LC 40KM |
| GE-BX40-SM1550 | 1.25G 1550nmTx/1310nmRx BIDI SMF LC 40KM |
| GE-BX60-SM1310 | 1.25G 1310nmTx/1550nmRx BIDI SMF LC 60KM |
| GE-BX60-SM1550 | 1.25G 1550nmTx/1310nmRx BIDI SMF LC 60KM |
| GE-BX80-SM1310 | 1.25G 1490nmTx/1550nmRx BIDI SMF LC 80KM |
| GE-BX80-SM1550 | 1.25G 1550nmTx/1490nmRx BIDI SMF LC 80KM |
| GE-BX120-SM1490 | 1.25G 1490nmTx/1550nmRx BIDI SMF LC 120KM |
| GE-BX120-SM1550 | 1.25G 1550nmTx/1490nmRx BIDI SMF LC 120KM |
Product Show
Packaing & Shipping
Factory Show
이 제품에 대한 자세한 내용을 알고 싶습니다
