제품 상세 정보:

원래 장소: 심천, 중국 (본토)
브랜드 이름: Nufiber
인증: CE
모델 번호: GM218SM-F20A/B

결제 및 배송 조건:

최소 주문 수량: 1 쌍
포장 세부 사항: 통 패키징, 제품이 국제 기준에서 싸여집니다. 그러므로 내용을 습기에서 막으면서, 각각 통은 폴리신 시트로 찌푸려집니다.
배달 시간: 지불 후에 1-3 작업 일
지불 조건: T/T, 서부 동맹의 신용 카드
공급 능력: 달 당 10000 쌍
최고의 가격 접촉

상세 정보

섬유형: SM 비디 인터페이스: RS232
광 커넥터: SC / FC / 거리 거리: 20km
보증: 3년
하이 라이트:

Nufiber Rs232 To Optical Converter

,

Nufiber Serial To Fiber Media Converter

,

20km Rs232 To Optical Converter

제품 설명

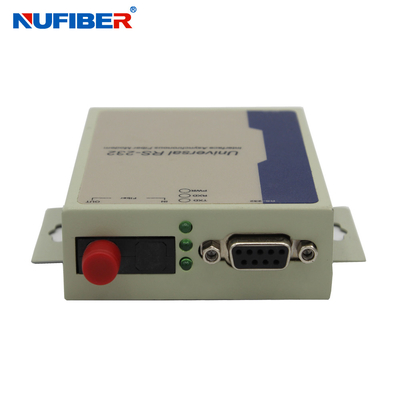

serial to fiber converter RS232 to fiber optic media converter fiber modem SM Bidi 20km GM218SM-F20A/B



Overview



GM218 is a sort of more function and economy RS-232 interface optic fiber MODEM. It is the best choice to connect RTU to HOST or SCADA controller. It used Optic fiber as transfer medium, increase the transfer function of system. Communication equipment abstain menace effective to lightning strike, surge, electromagnetism disturb under the secure environment.



Function and Characteristic



a) Support RS-232 interface

b) Asynchronous, point to point, rate up to 120Kbps

c) Support 5V DC input, consumption 2W

d) Internal or external power choice

e) Working wavelength: 1310nm

f) Auto test signal rate, zero delay auto transmit



Performance guideline



Interface: support EIARS-232 standard

Rate: 0-120Kbps

Transmit distance: Rs-232 port multi-mode 2KM, single-mode 20KM

Working environment: 0 to 50



Appearance guideline



Interface type: DB-9 female (RS-232), multi-mode choice ST/SC/FC interface,single-mode choice FC/SC/ST interface

L*W*H: 100mm*69mm*22mm

Shell: Iron

Color: White

Weight: 230g





Pin define



Power interface

DCIN --------- 5V input RS-232 port

IN --------- RS-232 input

OUT --------- RS-232 output

GND --------- Ground

Optical fiber interface

IN --------- Optical fiber input

OUT --------- Optical fiber output



Indicator light explain



Power: Power indication

RxD: Optical fiber interface receive indication

TxD: Optical fiber interface send indication



Applications

섬유 미디어 컨버터에 일련인 광 변환 장치에 대한 누화이바 Rs232 0



Product



섬유 미디어 컨버터에 일련인 광 변환 장치에 대한 누화이바 Rs232 1섬유 미디어 컨버터에 일련인 광 변환 장치에 대한 누화이바 Rs232 2섬유 미디어 컨버터에 일련인 광 변환 장치에 대한 누화이바 Rs232 3섬유 미디어 컨버터에 일련인 광 변환 장치에 대한 누화이바 Rs232 4섬유 미디어 컨버터에 일련인 광 변환 장치에 대한 누화이바 Rs232 5



Ordering Information





Model No. Specification
GM218MM-C2 RS232 TO FIBER,Multimode dual fiber,2KM,SC
GM218SM-C20 RS232 TO FIBER,Single mode dual fiber,20KM,SC
GM218SM-C20/A RS232 TO FIBER,Single mode single fiber,20KM,SC
GM218MM-C20/B RS232 TO FIBER,Multi-mode single fiber,2KM,SC
