제품 상세 정보:

원래 장소: 심천, 중국 (본토)
브랜드 이름: Nufiber
인증: CE
모델 번호: GM268MM-C2

결제 및 배송 조건:

최소 주문 수량: 1 쌍
포장 세부 사항: 통 패키징, 제품이 국제 기준에서 싸여집니다. 그러므로 내용을 습기에서 막으면서, 각각 통은 폴리신 시트로 찌푸려집니다.
배달 시간: 지불 후에 1-3 작업 일
지불 조건: T/T, 서부 동맹의 신용 카드
공급 능력: 달 당 10000 쌍
최고의 가격 접촉

상세 정보

섬유형: MM 이중 통신 인터페이스: RS422/485
광 커넥터: SC / FC / 거리 거리: 2km
보증: 3년
하이 라이트:

2km Rs485 To Optical Fiber Converter

,

1310nm Rs485 To Optical Fiber Converter

,

MM 1310nm Fiber Optical Modem

제품 설명

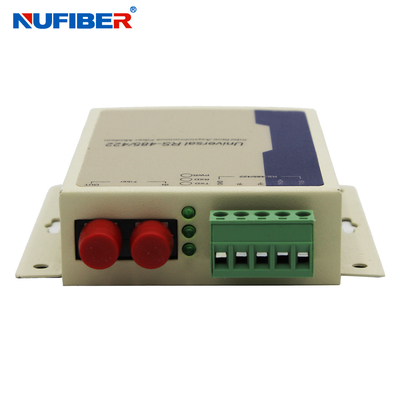

Serial to Fiber Converter RS485/422 Fiber Modem MM 1310nm Duplex 2km GM268MM-F2



Overview



Model 268 is a sort of more function and economy RS-485/422 interface optic fiber MODEM. It is the best choice to connect RTU to HOST or SCADA controller. It used Optic fiber as transfer medium, increase the transfer function of system. Communication equipment abstain menace effective to lightning strike, surge, electromagnetism disturb under the secure environment.



Function and Characteristic



a) Support RS-485/RS-422 interface

b) Asynchronous, point to point, rate up to 120Kbps

c) Support 5V DC power input

d) 1500W surge protection, 15KV static protection

e) RS-485/422 port support 32 node (can choice hand-tailor 128 Node)

f) Working wavelength: 1310nm

g) Auto test signal rate, zero delay auto transmit



Performance guideline



Interface: support EIA RS-485, RS-422 standard

Rate: 0-120Kbps

Transmit distance: RS-485/422 port 1200m, optical port multi-mode 2KM, single-mode 20KM

Working environment: -25 to 70



Appearance guideline



Interface type: 5 bit terminal block (RS-485/422), multi-mode choice ST/SC/FC interface, single-mode choice FC/SC/ST interface

L*W*H: 100mm*69mm*22mm

Shell: Iron

Color: White

Weight: 230g





Pin define



Optical fiber interface

IN --------- Optical fiber input

OUT --------- Optical fiber output

RS-422 port

T+ --------- RS-422 Send +

T- --------- RS-422 Send -

R+ --------- RS-422 Received +

R- -------- RS-422 Received –

GND --------- Ground

RS-485 port

D+ --------- RS-485+

D- --------- RS-485-

GND --------- Ground



Indicator light explain



Power: Power indication

RxD: Optical fiber interface receive indication

TxD: Optical fiber interface send indication



Applications

광섬유 컨버터 섬유 광학 모뎀에 대한 MM 1310nm 이중 통신 2 킬로미터 Rs485 0



Product



광섬유 컨버터 섬유 광학 모뎀에 대한 MM 1310nm 이중 통신 2 킬로미터 Rs485 1

광섬유 컨버터 섬유 광학 모뎀에 대한 MM 1310nm 이중 통신 2 킬로미터 Rs485 2광섬유 컨버터 섬유 광학 모뎀에 대한 MM 1310nm 이중 통신 2 킬로미터 Rs485 3광섬유 컨버터 섬유 광학 모뎀에 대한 MM 1310nm 이중 통신 2 킬로미터 Rs485 4



Ordering Information





Model No.

Specification

GM268MM-C2

RS485/422 TO FIBER,Multimode dual fiber,2KM,SC

GM268SM-C20

RS485/422 TO FIBER,Single mode dual fiber,20KM,SC

GM268SM-C40

RS485/422 TO FIBER,Single mode dual fiber,40KM,SC

GM268SM-C20/B1B2

RS485/422 TO FIBER,Single mode single fiber,20KM,SC

GM268SM-C40/B1B2

RS485/422 TO FIBER,Single mode single fiber,40KM,SC




Packing and Shipping



광섬유 컨버터 섬유 광학 모뎀에 대한 MM 1310nm 이중 통신 2 킬로미터 Rs485 5광섬유 컨버터 섬유 광학 모뎀에 대한 MM 1310nm 이중 통신 2 킬로미터 Rs485 6
