상세 정보 |
|||
| 상품 이름: | 산업 이더네트 스위치 | 애플리케이션: | 네트워크 |
|---|---|---|---|
| 일 임시 직원.: | -40 ~ +85℃ | 보증: | 3년 |
| 재료: | 알루미늄 합금 | 설치: | 소음 가로장 유형 |
| 보호 그레이드: | IP40 | 인터페이스: | 8x10/100/1000M UTP 이더넷 포트 |
| 전송 속도: | 10/100/1000Mbps | 전원 공급기: | DC12~48V (포 : DC48~57V) |
| 하이 라이트: | 1000MBase 통제불능인 산업적 스위치,UTP 통제불능인 산업적 Switch,1000MBase 8 항구 산업적 스위치 |
||
제품 설명
1000M Industrial POE Switch 8x 10/100/1000M Rj45 port with Din-rail wall mount
Overview
NuFiber’s NF508GP Industrial Ethernet witch,With 8 Port 10/100/1000Mbps Ethernet ports ,for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, industrial VoIP phone, wireless AP and other devices. Specially designed for harsh outdoor applications. Its 3KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted PoE system. Power input also chooses industry-standard types of power.
Features
• 8 Port 10/100/1000Mbps RJ45 with Auto Uplink™ .
• Automatic MAC address learning and aging
• Automatically support IGMP (Multicasting)
• 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
• LED indicators for monitoring power/link/activity
• Supports 10/100/1000Mbps-Full/Half-duplex
• Supports Wall-mount and DIN-Rail installation for lightning protection
• Supports Daisy-Chain connection
• Supports Broadcast Storm Control
• Super lightening protection, IP40 protection.
• Excellent heat elimination without cooling fan.
• Redundant dual DC power inputs.
• Redundant Power Inputs
• Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
• Harsh industrial environment or higher requirement
• -40℃-85℃ operating temperature range.
• 5-Year Warranty
Technical Specification
| Product Name | 8 Port 10/100/1000Base Industrial Ethernet POE Switch |
| Product Model | NF508GP |
| Interface | 8x 10/100/1000Base-T RJ45 POE Ethernet port |
| Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; |
| IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; | |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) |
| 100BASE-TX: Cat5 or later UTP(≤100 meter) | |
| 1000BASE-TX: Cat6 or later UTP(≤100 meter) | |
| Fiber Media |
Multi-mode: 2KM Single-mode: 20/40/60/80KM |
| Performance Specification | Bandwidth: 10Gbps |
| Packet Buffer Memory:1M | |
| Packet Forwarding Rate:148800pps/port | |
| MAC Address Table: 8K | |
| Forwarding Mode | Store-and-Forward |
| Protection | Lightening protection, IP40 protection |
| LED Indicators | Power: PWR; Link; Link/Act |
| Power Supply | Input Power: 2x10~57VDC (Terminal Block) |
| Other Specifications | |
| Working Environment | Working temperature: -40～85℃ ; Storage temperature: -45～85℃ |
| Relative Humidity: 5%~95 %( no condensation) | |
| Industry Standard | FCC CFR47 Part 15,EN55022/CISPR22, Class A EMS: |
| IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air) | |
| IEC61000-4-3 (RS): 10V/m (80MHz-2GHz) | |
| IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV | |
| IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV | |
| IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) | |
| IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) | |
| Shell | IP40 protect grade, metal shell |
| Installation | DIN-Rail or Wall mounts |
| Packing List | 1×Industrial Ethernet Switch (plus terminal block) |
| 1×User Manual/Certificate of quality/Warranty card | |
| 1×DIN-Rail mounting kit | |
| Certification | CE mark, commercial; FCC Part 15 Class B; VCCI Class B |
| EN 55022 (CISPR 22), Class B | |
| MTBF | 300,000 hours |
| Weight & Size | Product Weight: 0.65KG |
| Packing Weight: 1.19 KG | |
| Product size (L×W×H): 143.5mm× 130mm× 47mm | |
| Packing size(L×W×H): 286mm x 230mm x 60mm | |
| Warranty | 3-years |
Ordering information
| NF505FP | Industrial 5x10/100Mbps RJ45 POE ports network switch, DIN Rail type, DC10~48V |
| NF505GP | Industrial 5x10/100/1000Mbps RJ45 POE ports network switch, DIN Rail type, DC10~48V |
| NF508FP | Industrial 8x10/100Mbps RJ45 POE ports network switch, DIN Rail type, DC10~48V |
| NF508GP | Industrial 8x10/100/1000Mbps RJ45 POE ports network switch, DIN Rail type, DC10~48V |

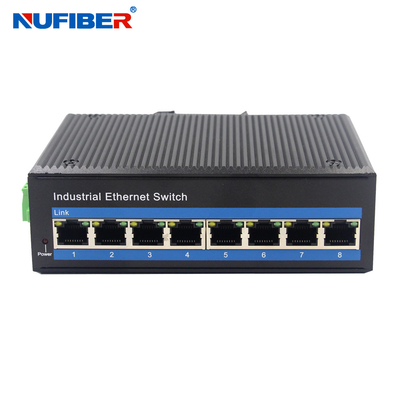

Product Picture
Connection Diagram
Packing & Shipping
