상세 정보 |
|||
| 상품 이름: | 산업용 섬유 미디어 컨버터 | 섬유형: | SFP 구멍 |
|---|---|---|---|
| 연결기: | SC / FC / 거리 ; 선택적인 LC (SFP 공항) | 일 임시 직원.: | -40 ~ +85℃ |
| 재료: | 알루미늄 합금 | 설치: | 소음 가로장 유형 |
| 보호 그레이드: | IP40 | 인터페이스: | 1x1000M SFP 포트 + 8x10 / 100M RJ45 포트 |
| 전송 속도: | 10/100Mbps | 전원 공급기: | DC12~48V (포 : DC48~57V) |
| 하이 라이트: | ODM 섬유 미디어 컨버터,OEM 8 공항 통제불능인 이서네트 스위치,OEM RJ45 섬유 미디어 컨버터 |
||
제품 설명
10/100M Industrial Fiber Ethernet Switch
Industrial ethernet switch 1x1000M SFP port + 8x10/100M RJ45 port with Din-rail DC10-52V IP40
Overview
NuFiber’s NF518GF-SFP Industrial Ethernet switch, With 8 Port 10/100M Ethernet ports and 1 port 1000Mbps SFP Slot, for connecting with devices like computer,switch, hub, server, etc, as well as powering network camera, industrial VoIP phone, wireless AP and other devices. Specially designed for harsh outdoor applications. Its 3KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted PoE system. Power input also chooses industry-standard types of power.
Features
• 8 Port 10/100Mbps RJ45 with Auto Uplink™ , 1 port 1000Mbps SFP Slot.
• Automatic MAC address learning and aging
• Automatically support IGMP (Multicasting)
• 10/100Mbps Auto-negotiation , auto-MDI-MDI-X
• LED indicators for monitoring power/link/activity
• Supports 10/100Mbps-Full/Half-duplex
• Supports Wall-mount and DIN-Rail installation for lightning protection
• Supports Daisy-Chain connection
• Supports Broadcast Storm Control
• Super lightening protection, IP40 protection.
• Excellent heat elimination without cooling fan.
• Redundant dual DC power inputs.
• Redundant Power Inputs
• Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
• Harsh industrial environment or higher requirement
• -40℃-85℃ operating temperature range.
• 5-Year Warranty
Technical Specification
| Product Name | 8 Port 10/100Base Industrial Ethernet Switch |
| Product Model | NF518GF-SFP |
| Interface | 8x 10/100Base-T RJ45 port + 1x 1000Mbps SFP Slot |
| Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; |
| IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; | |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) |
| 100BASE-TX: Cat5 or later UTP(≤100 meter) | |
| Fiber Media |
Multi-mode: 2KM Single-mode: 20/40/60/80KM |
| Performance Specification | Bandwidth: 5.6Gbps |
| Packet Buffer Memory: 1M | |
| Packet Forwarding Rate:148800pps/port | |
| MAC Address Table: 4K | |
| Forwarding Mode | Store-and-Forward |
| Protection | Lightening protection, IP40 protection |
| LED Indicators | Power: PWR; Link; Link/Act |
| Power Supply | Input Power: 2x10~58VDC (Terminal Block) |
| Other Specifications | |
| Working Environment | Working temperature: -40～85℃ ; Storage temperature: -45～85℃ |
| Relative Humidity: 5%~95 %( no condensation) | |
| Industry Standard | FCC CFR47 Part 15,EN55022/CISPR22, Class A EMS: |
| IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air) | |
| IEC61000-4-3 (RS): 10V/m (80MHz-2GHz) | |
| IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV | |
| IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV | |
| IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) | |
| IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) | |
| Shell | IP40 protect grade, metal shell |
| Installation | DIN-Rail or Wall mounts |
| Packing List | 1×Industrial Ethernet Switch (plus terminal block) |
| 1×User Manual/Certificate of quality/Warranty card | |
| 1×DIN-Rail mounting kit | |
| Certification | CE mark, commercial; FCC Part 15 Class B; VCCI Class B |
| EN 55022 (CISPR 22), Class B | |
| MTBF | 300,000 hours |
| Weight & Size | Product Weight: 0.6KG |
| Packing Weight: 1.1 KG | |
| Product size (L×W×H): 143.5mm× 130mm× 47mm | |
| Packing size(L×W×H): 286mm× 230 mm× 60m | |
| Warranty | 3 years |
Ordering information
| NF511G-SFP | Industrial 10/100/1000M 1 SFP port + 1 RJ45 port, DIN Rail type, DC10~48V, exclude power adapter and SFP module |
| NF512G-SFP | Industrial 10/100/1000M 1 SFP port + 2 RJ45 port, DIN Rail type, DC10~48V, exclude power adapter and SFP module |
| NF514G-SFP | Industrial 10/100/1000M 1 SFP port + 4 RJ45 port, DIN Rail type, DC10~48V, exclude power adapter and SFP module |
| NF524G-SFP | Industrial 10/100/1000M 2 SFP port + 4 RJ45 port, DIN Rail type, DC10~48V, exclude power adapter and SFP module |
| NF518GF-SFP | Industrial 1x1000M SFP port + 8x10/100M RJ45 port, DIN Rail type, DC 10~48V, exclude power adapter and SFP module |
| NF528GF-SFP | Industrial 2x1000M SFP port + 8x10/100M RJ45 port, DIN Rail type, DC 10~48V, exclude power adapter and SFP module |
| NF518G-SFP | Industrial 1x1000M SFP port + 8x10/100/1000M RJ45 port, DIN Rail type, DC 10~48V, exclude power adapter and SFP module |
| NF528G-SFP | Industrial 2x1000M SFP port + 8x10/100/1000M RJ45 port, DIN Rail type, DC 10~48V, exclude power adapter and SFP module |

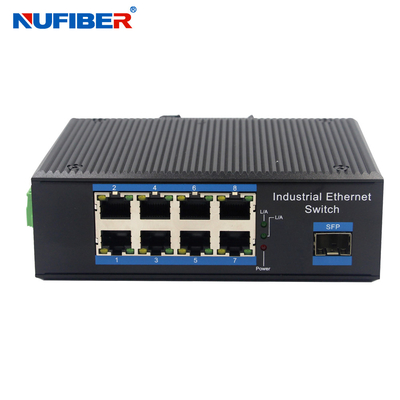

Product Picture
Packing & Shipping
