제품 상세 정보:

원래 장소: 중국
브랜드 이름: NuFiber
인증: CE FCC
모델 번호: NF-S904P-24V

결제 및 배송 조건:

최소 주문 수량: 1개 부분
포장 세부 사항: 20 PC / 통, 통 사이즈 : 452*372*297mm
배달 시간: 1-3 일 일
지불 조건: L/C (신용장), 전신환, 웨스턴 유니온
공급 능력: 달 당 5000 PC
최고의 가격 접촉

상세 정보

재료: 철 상자 색: 검정색
데이타 전속률: 10/100Mbps Poe 항구: 4
업링크 포트: 1 표준: 비표준
총 힘: 65Watts 전원 공급기: 110-240V 내장형 전원공급부
OEM과 ODM: 용인됩니다
하이 라이트:

포 동력이 공급된 스위치

,

포가 강화한 비정상 24V는 24 와트 공항을 바꿉니다

제품 설명

10/100M 24V POE Switch with 4 POE ports 1 Uplink port, maxmium 24 watts each port 65W internal po



Overview

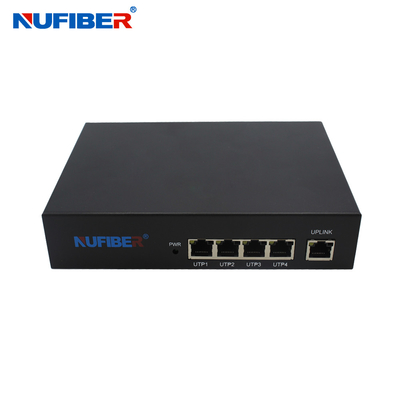

NF-S904P-24V 10/100Mbps nonstandard POE Switch , providing 1 10/100Mbps Up-link port and 4 10/100Mbps POE ports.It designs with 65W industrial power adapter, each port max output power is 24Watts. Besides, Each port is installed fuse to keep safety. NF-S904P-24V passive POE Switch can provide Power for wireless AP, IP Camera which is nonstandard PD devices. It is widely used in Enterprise,hotel, interlocking institution, Campus network, etc.



NF-S904P-24V POE Switch power pin 4,5(+),7,8(-).



Technical Parameter



Description S904P-24V
Hardware Specifications Dimension(L*W*H) / Gross Weight 230mm*150mm*25mm/1.52kg
Port Number 4*10/100M auto-adaption RJ45 port
PoE port 1 to 4 support POE , Output: 24V
LED PWR , Link/Act
Input Power 100V~240V AC,50/60Hz
Power Dissipation Internal power,output:65W
Heat-dissipating Method natural wind cooling
Key indicator Bandwidth 1.8 Gbps
Exchange mode Store-and-forward
MAC Address Table 1K
Basic Function Second line speed forward Support
Automatic positive and negative cable Support
Auto-Negotiation Support
POE port power priority Support
Automatic MAC Address learning and aging Support
Half-duplex Back-pressure flow control Support
Full Duplex IEEE 802.3x flow control Support
Standard IEEE 802.3af,IEEE 802.3at Nonsupport
IEEE 802.3 10BASE-T Support
IEEE 802.3u 100BASE-TX Support
ANSI/IEEE 802.3 NWay Auto-Negotiation Support
IEEE802.3x Flow Control Standard Support
Environment Operating Temperature -10℃~60℃
Operating Humidity 10%~90% (no condensing)
Storage Temperature -40℃~70℃
Storage Humidity 5%~90% (no condensing)



Advantage of Combined PoE and Media Conversion


With the data, long reach fiber capability and PoE from one unit, the NF-S904P will reduce cables and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. It frees the security IP camera and wireless AP deployment from restrictions due to power outlet locations. Power and data switching are integrated into one unit and delivered over a single cable, eliminating costs for additional AC wiring and reducing installation time.

Product Application





Ordering Information



Model No. Description POE supply
NF904P-24V 1 to 4 support POE 10/100M RJ-45 1~8 24V/1A
NF908P-24V 1 to 8 support POE 10/100M RJ-45 1~8 24V/1A



Connection Diagram
