상세 정보 |
|||
| 상품 이름: | 포 분배기 | 색: | 백색 검정 |
|---|---|---|---|
| 데이타 전속률: | 10/100Mbps | 와트: | 10W |
| 표준: | IEEE802.3af | 전원 입력: | DC 24V |
| OEM&ODM: | 용인됩니다 | 전원 출력: | DC12V |
| 하이 라이트: | ip 카메라를 위한 100Mbps 작은 포 Splitter,10W 작은 포 분배기 DC24V,10W 포 분배기 |
||
제품 설명

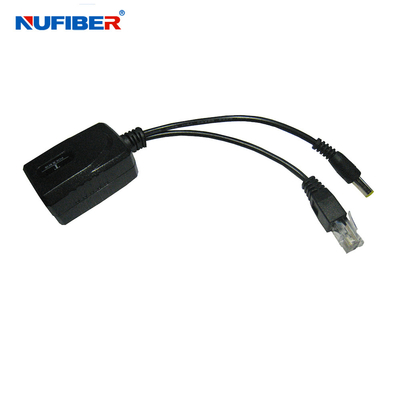

10/100M Mini PoE splitter DC24V to 12V, Input 24V, Output 12V, for CCTV IP devices
Description
PoE Splitter is a kind of device which via a twisted pair cable to transmit data and power both in a long distance.Using DC 24-48V power to supply the IP cameras from the back end to the front end.
This product has taken single chip computer control scheme and also has power short circuit protection. It is high power output current and the output voltage and current can be DC12V 1. 5A.
The transmission distance can up to 80 meters. (Note: If transmit power only, the transmission distance can be 200 meters). A DC48V2A power device can supply 4 sets of IP cameras and provide the voltage and current for working.
This product has realized the power supply and signal transmission in common cable system. Thus it can reduce engineering cost and improve the project in an artistic way. It’s your best choice in the IP cameras.
Key feature
1.Input power:12V-48V
2.Transmission distance:Under 80m
3.Simply & Professional appearance for IP camera power cabling
4.Easier for IP camera installation, save time save power cable and more securer cable connection
Specification
| Product Name | Passive POE Splitter |
| Data Rate | 10/100Mbps |
| Input | 24V |
| OutPut | 12V or 5V |
| Data Pins | 1/2/3/6 |
| Power Pins | 4/5(+) 7/8(-) |
| Data In | PC/Hub/Switch |
| Connector | RJ-45 |
| Transmssion Distance | 80meters |
| Ethernet Cable | TIA/EIA 568 Cat.5 or Cat.5e |
| Operation Temperature | 0°C ~ +40°C |
| Storage Temperature | -40°C ~ +70°C |
| Operation Humidity | 10% - 80% RH |
| Stroage Humidity | 5% - 90% RH |
| Cable Length | 150mm +10mm |
| Warranty | 1 year warranty |
Order Information
| Part Number | Product Description |
| NF-PS4812 | 10/100M PoE splitter, 48V to 12V, IEEE802.3af |
| NF-PS4812G | 10/100/1000M PoE splitter, 48V to 12V, IEEE802.3af |
| NF-PS4805 | 10/100M PoE splitter, 48V to 5V, IEEE802.3af |
| NF-PS4805G | 10/100/1000M PoE splitter, 48V to 5V, IEEE802.3af |
| NF-PS2412 | 10/100M PoE splitter, 24V to 12V for IP camera |
| NF-PS2412-P | 10/100M PoE splitter, 24V to 12V for IP camera,Waterproof |
