제품 상세 정보:

원래 장소: 중국
브랜드 이름: NuFiber
인증: CE FCC Rohs
모델 번호: QSFP28-100G-SR4

결제 및 배송 조건:

최소 주문 수량: 1개 부분
포장 세부 사항: 4 PC / 플라스틱 판,
배달 시간: 1-3 작업 일수 이내에
지불 조건: L/C (신용장), 전신환, 웨스턴 유니온, 신용 카드
공급 능력: 달 당 10,000 PC
최고의 가격 접촉

상세 정보

자료 비율: 100Gb/s 사고 방식: 850nm
거리: 100m 연결기: MPO/MTP
DDM: 지원 섬유형: 다중 모드 MPO 연결기
전원 공급기: 3.3V 작동 온도: 0~70C
보증: 3년 호환성: 화웨이, 시스코, HP, H3C...
제조사:
하이 라이트:

QSFP28-100G-SR4 100G QSFP28 Transceiver

,

850nm 100G MPO Transceiver

,

QSFP28-100G-SR4

제품 설명

(QSFP28-100G-SR4)

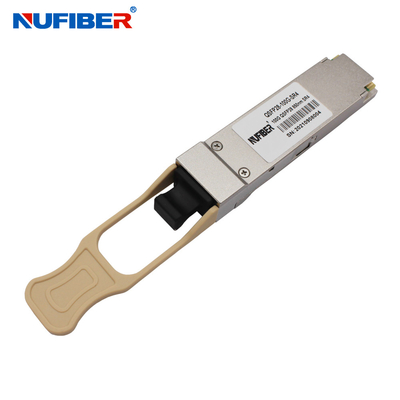

                                      QSFP28-100G-SR4 100Gb/s QSFP28 Transceiver multimode 100m 850nm MPO/MTP

Hot Pluggable, MTP/MPO Connector, 850nm, VCSEL, Multimode

Description

The QSFP28-100G-SR4 is a transceiver module designed for 100m optical communication applications. The design is compliant to 100GbASE-SR4 of the IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard . The module converts 4 inputs channels (ch) of 25.78Gbps to 27.95Gbps electrical data to 4 lanes optical signals, and multiplexes them into a single channel for 100Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 100Gb/s input into 4 lanes signals, and converts them to 4 lanes output electrical data.





Features

  • 4 independent full-duplex channels
  • Up to 27.95Gbps per channel bandwidth
  • Aggregate bandwidth of > 100Gbps
  • MTP/MPO optical connector
  • QSFP28 MSA compliant
  • Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard
  • Digital diagnostic capabilities
  • Single +3.3V power supply operating
  • Temperature range 0°C to 70°C
  • RoHS Compliant Part



Applications

  • Local Area Network (LAN)
  • Wide Area Network (WAN)
  • Ethernet switches and router applications



Optical Parameters



Parameter Symbol Min Typ Max Unit Note
Data Rate per Channel   - 25.78125   Gbps
Power Consumption   - 2.5 3.5 W
Supply Current Icc   0.75 1.0 A
Control I/O Voltage-High VIH 2.0   Vcc V
Control I/O Voltage-Low VIL 0   0.7 V
Inter-Channel Skew TSK     150 Ps
RESETL Duration     10   Us
RESETL De-assert time       100 ms
Power On Time       100 ms
Transmitter
Single Ended Output Voltage Tolerance   0.3   4 V 1
Common mode Voltage Tolerance   15     mV
Transmit Input Diff Voltage VI 120   1200 mV
Transmit Input Diff Impedance ZIN 80 100 120
Data Dependent Input Jitter DDJ     0.1 UI
Data Input Total Jitter TJ     0.28 UI
Receiver
Single Ended Output Voltage Tolerance   0.3   4 V
Rx Output Diff Voltage Vo   600 800 mV
Rx Output Rise and Fall Voltage Tr/Tf     35 ps 1
Total Jitter TJ     0.7 UI
Deterministic Jitter DJ     0.42 UI



Ordering information



100G QSFP28
QSFP28-100G-SR4 103.1 Gbp 850nm MMF MTP/MPO 100m VCSEL 850nm
QSFP28-100G-LR4 103.1 Gbp 1310nm SMF LC duplex 10km DML 1310nm
QSFP28-100G-ER4 103.1Gbps 1310nm SMF LC Duplex 25km-40km 4x EML
QSFP28-100G-PSM4 103.1 Gbp 1310nm SMF MTP/MPO 500m 4x DFB
QSFP28-100G-LR-S 103.1 Gbp 1310nm SMF MTP/MPO 2km 4x DFB
QSFP28-100G-CWDM4-S 103.1 Gbp CWDM SMF LC duplex 2km DML CWDM
1271~1331nm
QSFP28-100G-CWDM4-L 103.1 Gbp CWDM SMF LC duplex 10km DML CWDM
1271~1331nm
