상세 정보 |
|||
| 재료: | 철 상자 | 색: | 검정색 |
|---|---|---|---|
| 전송 매체: | 트위스트 페어 케이블 / 전화선 | 거리: | 0-2KM |
| BNC는 좌현으로 향하게 합니다: | 1 | RJ45 항구: | 1 |
| POE 기능: | 지원 | 전원 공급기: | 12vdc |
| OEM: | 용인됩니다 | 사이즈: | 119mm*113mm*29mm |
| 하이 라이트: | 동축 교수 에 동축 Extender,10m 이더넷 에 100M IP 이더넷 |
||
제품 설명
10/100M IP Ethernet over 2wire Twisted pair cable Extender HD video converter for IP Network using
Description
NuFiber® NF-1802 is the high-performance Ethernet-over-twisted pair extender that converts between twisted pair (UTP) and coaxial cable for every kind of IP Ethernet application. It offers the absolutely fastest data transmission speed over existing coaxial cable without the need of rewiring. On the UTP side, the NF-1802 uses a modular EIA / TIA 568 RJ-45 connector that supports CAT-5/5e or above wiring with the distance up to 100 meters (328 feet). On the coaxial cable side, the NF-1802 utilizes a twisted-pair connector that supports 50ohm or 75ohm coaxial cable with the distance up to 2km. It is ideal for extending the distance and signal conversion by transmitting the Ethernet data from the coaxial cable for any type of IP network device such as IP camera, wireless access point, NVR and digital signage.
Features
(1)High Transmission Speed
Physical Port transmission rate up to 200Mbps.
Valid data flowing rate up to 80Mbps
Transmission distance up to 2KM
Supply 10/100Mbps 1-port Ethernet interface and 1-port twisted-pair interface
(2)High compatibility
Support QAM 16/64/256/1024, DQPSK,DBPSK and ROBO modulation technology.
Support conformability transmission QoS, Multi cast and IGMP.
(3)High security
Adopt 128bits AES data encryption and Key management.
Adopt Peer-to-peer network framework
Plug and Play (without any setting)
Parameter
| Interface | 10/100Base-TX UTP port (Auto-adaptation ) ×1 twisted-pair×1 |
| Transmission medium | Twisted pair cable |
| Modulation technique | OFDM |
| LED Indicators |
Power: Light on: Normal operation Coax: Light on: Video signal is normal UTP, Act/Link: Light on: connection is correct Light Blink: normal communication M(master)/S(slave) : Light on: Under Slave Light off: Under Master |
| Transmission band | 2MHz–28MHz |
| Protocol standard | IEEE 802.3, IEEE 802.3u |
| Dimensions (W x D x H) | 95*70*25mm |
| Power supply | DC 12V 1A |
| Security technology | 128-DES Data encryption and Key management |
| Physical layer transmission rate | 200Mbps |
| Transmission distance | 2KM |
| Support operating system | Windows 98/ME/NT/2003/7, Windows XP Home/Pro, Mac OSX , Linux |
| Operating voltage range | AC 100V-240V 60/50Hz |
| Operating environment | Operating temperature; 0°C ~ +50°C Storage temperature: -20°C ~ +70°C Operating humidity: 5%-90% |

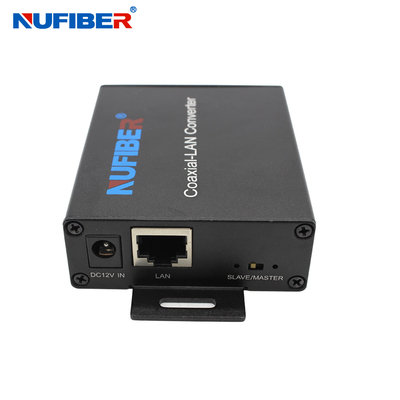

Products Show
Connection Diagram
