다중 모드 10 100 1000Base TX FX 미디어 컨버터 기가비트 이더넷 미디어 컨버터
제품 상세 정보:
원래 장소: | 센즈헨, 중국 (본토) |
브랜드 이름: | Nufiber |
인증: | CE |
모델 번호: | NF-C2200SX |
결제 및 배송 조건:
최소 주문 수량: | 1개 부분 |
---|---|
포장 세부 사항: | 통 패키징, 제품이 국제 기준에서 싸여집니다. 각각 통은 폴리신 시트로 일직선이고 그러므로 방지합니다 습기로부터의 내용 |
배달 시간: | 지불 후에 1-3 작업 일 이내에 |
지불 조건: | 전신환, 웨스턴 유니온, 신용 카드 |
공급 능력: | 달 당 10000 쌍 |
상세 정보 |
|||
섬유형: | MM 듀얼 섬유 | 섬유 공용영역: | SC/ST/FC |
---|---|---|---|
연결기: | RJ45 항구 | 전송률: | 10/100/1000M |
거리: | 550M | 사고 방식: | TRx850nm |
보증: | 3년 | ||
하이 라이트: | 1000Base TX FX 미디어 컨버터,다중 모드 TX FX 미디어 컨버터,TX FX 기가비트 이더넷 미디어 컨버터 |
제품 설명

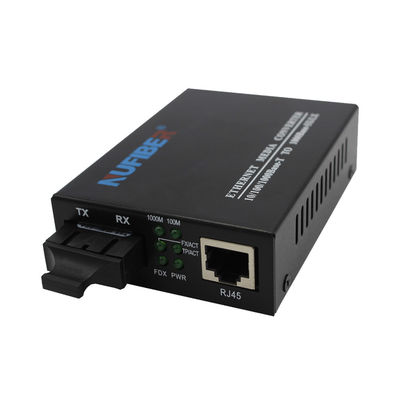

10/100/1000Mbps Fiber Media Converter 10/100/1000Base-TX to 1000Base-FX Multi-Mode Dual Fiber SC 550m NF-C2200SX
Overview
The NF-C2200LX20 Series Gigabit Ethernet Media Converters with external power supply are designed to transmit and receive 10/100/1000Mbps data over optical fiber. The electrical interface will Auto-Negotiate to a 100 Mbps or 1000Mbps Ethernet rate without any adjustments. The optical interface operates at a 1000 Mbps Ethernet rate. Both are environmentally hardened to operate in extreme temperatures. LED indicators are provided for confirming equipment operating status.
Key Features
1. 10/100/1000Mbps Ethernet
2. 10/100/1000 BASE-T/TX electrical port
3. 1000 BASE-SX/LX optical port
4. Electrical port supports Auto-Negotiation for 100Mbps or 1000Mbps, full duplex or half duplex data.
5. Optical port supports 1000Mbps full duplex data
6. Automatic MDI/MDI-X crossover
7. Distances up to 2km for Multi mode;Up to 120km for Single mode
8. Voltage transient protection on all power and signal input.output lines provides Voltage transient protection on all power and signal input.output lines provides
9. No in-field optical adjustments required
10.LED Indicators
Applications
1. Access Control Systems
2. Building and Environmental Control Systems
3. Tamper Switch
4. 10/100/1000 Mbps Ethernet Media Converter
5. High Speed Computer Links
Technical Parameter
Parameters | Specifications |
Standards | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-TX/FX |
Optic Wavelength |
NF-C2000SX: 850nm NF-C2000LX20: 1310nm NF-C2000-SFP: N/A NF-C2000LX20A:TX:1310nm/RX:1550nm NF-C2000LX20B:TX:1550nm/RX:1310nm |
Transmission Distance |
Multimode: 2km Single mode:10km~120km |
Port |
Optical: 2 Fibers (SC/ST/FC Optional) Power: Terminal Block Electrical: RJ45 |
Led Indicators |
Optical Link/Data Activity Electrical Link/Data Activity |
MDI/MDI-X | Auto selection |
Mac address table | 4K |
Memory buffer | 256K |
Data
|
Data Interface: Ethernet Data Rate:10/100/1000 Mbps |
Power Supply |
External : 5V DC 2A Power Consumption : ≤5W |
Operating Temperature | 0 °C to +70 °C |
Storage Temperature | -20 °C to +80 °C |
Relative Humidity |
5% to 90% (non-condensing) MTBF: >100,000 hours |
Dimensions | 95mm * 70 mm * 25mm |
Net Weight | 0.165 kg |
Emissions | FCC , Class A, RoHS, CE Mark |
Connection Diagram
Products show
Packaging and shipping
