상세 정보 |
|||
| 상품 이름: | 40G QSFP+ 내지 40G QSFP+ AOC | 접속구의 형태: | QSFP+에 QSFP+ |
|---|---|---|---|
| 최대 전송율: | 40Gbps | 케이블 길이: | 주문 제작됩니다 |
| 온도: | 70°C에 0 | 광학: | VCSEL 레이저 |
| 보증: | 3년 | ||
| 하이 라이트: | QSFP 40G AOC 케이블,QSFP 40G 섬유 점퍼 케이블,AOC 케이블 섬유 20m 적합한 시스코 |
||
제품 설명

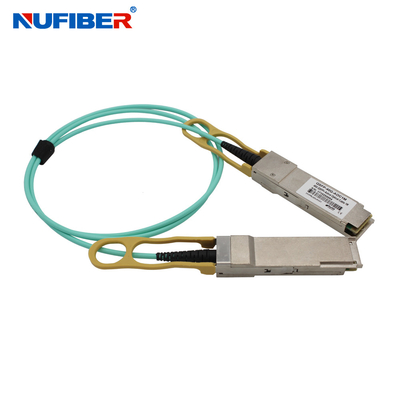

High Speed Compatible Cisco QSFP 40G AOC Active Optical Fiber jumper cable 1m 2m 3m 5m 7m 20m
Description:
The QSFP+ active optic cables are a high performance, low power consumption, long reach inter connect solution supporting Infini Band QDR/DDR/SDR,12.5G/10G/8G/4G/2G fiber channel ,PCIe and SAS. It is compliant with the QSFP MSA and IEEE P802.3ba. QSFP AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 11.3Gb/s, providing an aggregated rate of 45.2Gb/s.QSFP+AOC is one kind of parallel transceiver which provides increased port density and total system cost savings.
Key Features:
| Four-channel full-duplex active optical cable |
| Transmission data rate up to 11.3Gbit/s per channel |
| Reliable VCSEL array technology using multimode fiber |
| Available in standard lengths of 3, 5, 10, 15, 20, 30, 50,100m |
| Low power consumption <1.5W |
| Operating case temperature 0°C to +70°C |
| 3.3V power supply voltage |
| RoHS 6 compliant |
| Hot Pluggable QSFP form factor |
Application:
| Infiniband QDR/DDR/SDR |
| Datacenter |
| 40G Ethernet |
| 4G/8G/10G Fibre Channel |
Standard:
(1)Compliant with IEEE 802.3ba-2010,Annex 86A for 40GBASE-SR4;
(2)Compliant with InfiniBand EDR,FDR,QDR,DDR,SDR;
(3)Compliant with QSFP MSA(SFF-8436);
(4)Compliant with SFP MSA(SFF-8431);
(5)RoHS Compliant:lead-free.
Products show:
Factory Show:
Packing & Shipping:
FAQ:
