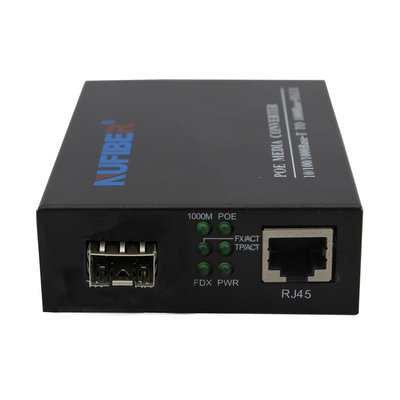

Plug And Play Poe Powered Media Converter With SFP Slot
제품 상세 정보:
| 원래 장소: | 센즈헨, 중국 (본토) |
| 브랜드 이름: | Nufiber |
| 인증: | CE |
| 모델 번호: | NF-PSE6301-SFP |
결제 및 배송 조건:
| 최소 주문 수량: | 1piece |
|---|---|
| 포장 세부 사항: | 통 패키징, 제품이 국제 기준에서 싸여집니다. 각각 통은 폴리신 시트로 일직선이고 그러므로 방지합니다 습기로부터의 내용 |
| 배달 시간: | 지불 후에 1-3 작업 일 이내에 |
| 지불 조건: | 서부 동맹, T/T |
| 공급 능력: | 달 당 10000 쌍 |
|
상세 정보 |
|||
| 섬유형: | 멀티 모드 / 단일모드 | 섬유 공용영역: | LC / SC |
|---|---|---|---|
| 연결기: | RJ45 항구 | 전송률: | 0.55KM / 2KM/ 20KM / 40KM / 60KM 기타 등등 |
| 거리: | SFP 단위 | 사고 방식: | 850nm/1310nm/1550nm |
| 보증: | 3년 | ||
| 하이 라이트: | Plug And Play Poe Powered Media Converter,SFP Slot Poe Powered Media Converter |
||
제품 설명
1-port 10/100/1000M TX to 1-port 100/1000M SFP Slot POE Media Converter
Overview
This NF-PSE6301-SFP series Media Converter are 10/100/1000Base-TX to 100/1000Base-FX Power over Ethernet(PoE) devices that serve as Power Sourcing Equipment(PSE).which allows the converter to provide power to IEEE802.3af/at PoE standard-compliant Powered Devices(PDs) using the twisted pair connection. Power transmitted along with data in one single cable(RJ45) allows you to expand your network where there are no power lines or outlets. Where you wish to devices such as Wifi Aps. IP Cameras or IP Phones.etc.
Features
1,Support 1000Mbps half-duplex/full-duplex mode and auto MDI/MDIX;
2,With PoE supported to save power infrastructure cost;
3,SFP port can plug into 1.25G SFP module, support single-mode and multi mode, optical fiber transmission distance support 0-120KM;
4,Support IEEE 802.3u 100Base-TX,IEEE802.3 af/at standard;
5,Support LFP (Link fault pass)；Support FCL (Flow control)；
6,No storage and forward technology, without delay;
7,Plug and play, no other software and transfer agreement needed;
8,Stand alone unit with mini design;
9,Built-in splicing slot, with magnet and hanger, unique and integrated design, wall-mounted, splicing and desktop installations available, which suits in all kinds of engineering installation.
Specification
| Standard | IEEE802.3i 10BASE-T |
| IEEE802.3u 100BASE-TX | |
| IEEE802.3z 1000BASE-TX | |
| IEEE802.3x Flow Control | |
| IEEE802.3af/at Power over Ethernet | |
| PoE power |
15.4W per port (IEEE802.3af) 25.5W per port (IEEE802.3at) |
| Wiring: Data & power provided over pairs 1/2 and 3/6 or 4/5(+) and 7/8(-) | |
| Cable: UTP cat.5 or higher | |
| Fiber type | Multi mode(MM): 62.5/125m.50/125m |
| Single mode(SM): 9/125m | |
| Distance | Multi mode & Dual Fiber 550M(850nm); 2km(1310nm) |
| Single mode & Single Fiber:20/40/60/80/120KM | |
| Data rate | 10/100/1000Mpbs |
| Connector | 1 RJ45 +1 SFP port |
| Wavelength | 1310nm 1490nm 1550nm |
| Diagnostic LED | Power Link/Activity |
| Power | DC52V/0.7A/36W |
| Power Consumption | <3w |
| Temperature |
0~50℃(Operating) -20~70℃(Storage) |
| Humidity | 5%~90% |
| Dimension | 90x70x26mm |
Connection Diagram
Products Show
Ordering Information
| Model | Description | Fiber Mode | Wavelength | Distance | Connector |
| NF-PSE5201-C02 | 10/100Base-Tx to 100Base-FX | MMF | TRx:850nm | 2km | SC |
| or TRx:1310nm | |||||
| NF-PSE5201-S20 | 10/100Base-Tx to 100Base-FX | SMF | TRx:1310nm | 20 km | SC |
| NF-PSE5201-S20A/B | 10/100Base-Tx to 100Base-FX | SMF | Tx:1310nm/Rx1550nm | 20 km | SC |
| Tx:1550nm/Rx1310nm | |||||
| NF-PSE5201-SFP | 10/100Base-Tx to 100Base-FX | SFP | 850nm/1310nm/1550nm | 0~120km | LC/SC |
| NF-PSE5201G-C02 | 10/100/1000Base-Tx to 1000Base-FX | MMF | TRx:850nm | 2km | SC |
| or TRx:1310nm | |||||
| NF-PSE5201G-S20 | 10/100/1000Base-Tx to 1000Base-FX | SMF | TRx:1310nm | 20 km | SC |
| NF-PSE5201G-S20A/B | 10/100/1000Base-Tx to 1000Base-FX | SMF | Tx:1310nm/Rx1550nm | 20 km | SC |
| NF-PSE6301-SFP | 10/100/1000Base-Tx to 100/1000Base-FX | SFP | 850nm/1310nm/1550nm | 0~120km | LC/SC |
