제품 상세 정보:

원래 장소: 센즈헨, 중국 (본토)
브랜드 이름: Nufiber
인증: CE
모델 번호: NF-K750C

결제 및 배송 조건:

최소 주문 수량: 1개 부분
포장 세부 사항: 통 패키징, 제품이 국제 기준에서 싸여집니다. 각각 통은 폴리신 시트로 일직선이고 그러므로 방지합니다 습기로부터의 내용
배달 시간: 지불 후에 1-3 작업 일 이내에
지불 조건: 전신환, 웨스턴 유니온, 신용 카드
공급 능력: 달 당 10000 쌍
최고의 가격 접촉

상세 정보

섬유형: MM 듀얼 섬유 섬유 공용영역: SC/ST/FC
연결기: RJ45 항구 전송률: 10/100M
거리: 2km 사고 방식: TRx850nm
보증: 3년
하이 라이트:

멀티 모드 광섬유 미디어 컨버터 고속 이더넷

,

멀티 모드 광섬유 미디어 컨버터

제품 설명

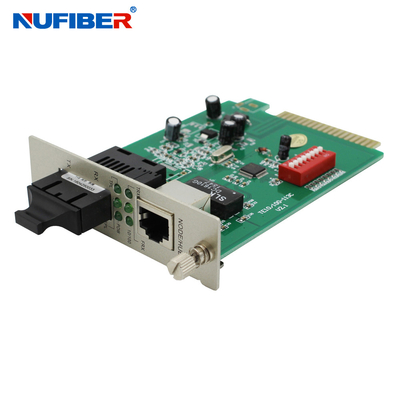

10/100Mbps Card Type Fiber Media Converter 10/100Base-TX to 100Base-FX Multi-Mode Dual Fiber SC NF-K750C



Overview

This Fast Ethernet converter features LFP (Link Fault Pass-through) function enhances the integrity and conformity of the TP-Fiber linking to improve the maintainability of the network. It converts 10/100BASE-TX Fast Ethernet twisted-pair signals to 100BASE-FX Fast Ethernet fiber signals. This converter has the ability to support distances of up to 2 kilometers for multi-mode fiber and up to 120 kilometers for long-haul single mode fiber between a LAN switch, file server and another networking device. Five LEDs are provided to monitor the operation status of the converter and the DIP switch on the side panel is used to set the required configuration for various applications. In addition, this media converter is equipped with an RJ-45 port and a fiber optic ST or SC or WDM port, allowing it to quickly integrate a 10/100Base-TX network into a 100Base-FX (fiber) network.

Key Features

1. Plug and play, high performance, Low power consumption
2. Complies with IEEE802.3 (10BASE-T) and IEEE802.3u (100BASE-TX/FX) standards
4. LFP (Link Fault Pass-through) function with 113C chipset
5. Electrical port supports Auto-Negotiation for 10Mbps or 100Mbps, full duplex or half duplex data.
6. Automatic MDI/MDI-X crossover
7. Distances up to: 2 km Multimode, 120 km Single Mode
8. ST, SC, FC optical connectors
9. Status LED's for TX,FX LINK/ACT, POWER,100M to easily monitor network status
10.External power adapter

Applications

►Access Control Systems
►Building and Environmental Control Systems
►Tamper Switch
►10/100 Mbps Ethernet Media Converter
►High Speed Computer Links

Technical Specifications



Parameters Specifications
Standards IEEE802.3u (100Base-TX/FX), IEEE 802.3 (10Base-T)
Data Transfer Rate 100Mbps: 148,800 pps
10Mbps: 14,880 pps
Wavelength Multi-mode: 850 nm or 1310nm
Single-mode: 1310 nm , 1550 nm
Transmission Distance

Fiber:
Multi-mode: 2 km (fiber size: 62.5/125 or 50/125 μm)
Single-mode: 25/40/60/100/120 km
UTP:

Cat. 3/4/5/6: 100 m

Port

One RJ45 port
One Fiber port (ST/SC/FC Optional, LC:SFP Module)

MDI/MDI-X Auto selection
LED Indicator PWR: Green Illuminated to indicate unit is operating under normal operation
TX LNK/ACT: Green Illuminated indicates receiving link pulses from compliant copper device and flashes when data being sent / received
FX LNK/ACT: Green Illuminated indicates receiving link pulses from compliant fiber device and flashes when data being sent / received
100M: Green Illuminated when data packets are being transmitted at 100 Mbps
Power Supply Outside: 5 V DC 1 A
Built-in: 100 V to 240 V AC 50 Hz to 60 Hz
Operating Temp 0 °C to +70 °C
Storage Temp -20 °C to +80 °C
Storage Humidity 5% to 90% (non-condensing)
Dimensions 95 mm × 70 mm × 25 mm
Net Weight 0.165 kg


Connection Diagram

멀티 모드 광섬유 미디어 컨버터 고속 이더넷 0

Products show
 멀티 모드 광섬유 미디어 컨버터 고속 이더넷 1

멀티 모드 광섬유 미디어 컨버터 고속 이더넷 2멀티 모드 광섬유 미디어 컨버터 고속 이더넷 3멀티 모드 광섬유 미디어 컨버터 고속 이더넷 4멀티 모드 광섬유 미디어 컨버터 고속 이더넷 5




Packaging and Shipping

멀티 모드 광섬유 미디어 컨버터 고속 이더넷 6멀티 모드 광섬유 미디어 컨버터 고속 이더넷 7
